Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 8mm | Pixel Density: | 15625 Pixels/m2 |
|---|---|---|---|
| LED Type: | SMD3535 | Cabinet Resolution: | 80*80 Pixels |
| Ingress Protection(front/rear): | IP65/IP54 | Driving Method: | 1/5 Scan |
| Gray Scale: | 16bit | Life Span: | ≥100000hrs |
| High Light: | led screen stage backdrop,stage background led screen |
||

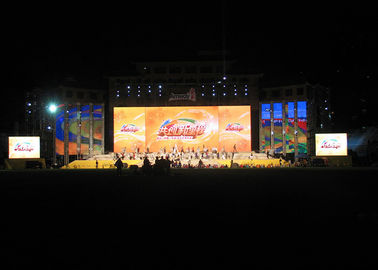

P8 Outdoor Stage Rental LED Display Ultra Slim and Lightweight High Refresh Rate
Key Feature
• Ultra slim and lightweight
• Rental die-casting aluminum structure
• Seamless splicing
• Quick lock system, easy installation
• High refresh rate and high contrast
• Wide viewing angle
• Working status indicator available
Specification
| Model | ORB-8 |
| Pixel Pitch | 8mm |
| Pixel Density | 15625 pixels/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 640mmx640mm |
| Cabinet Resolution | 80*80pixels |
| Cabinet Weight | 13kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/5 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 275w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Products After-sale Service
1. Three-years warranty for the entire system, except human factors and force majeure Guarantee.
2. One of the year the quality, maintenance of life, and to ensure the maintenance time in the contract.
3. The warranty period: solving problems for users through telephone, fax or email. Update the software for free.
4. As to product quality problems caused by the design, manufacturing, technology installation, equipment, replacement and maintenance are free. System damage caused by force majeure (flood, fire, earthquake, war, and so on) as well as users) artificial disturbance (construction, cleaning) should be coordinated by the two parties to résoudre.Entretien
5. Life long for the system: after the warranty, we charge only the cost of equipment.
